Pennyjie ZJ6348900

Features:
100% brand new and high quality!
Night vision
Mirror function
Distance lines
Auto white balance
Auto Backlight Compensation

Product Properties:
Brand: no
Type: Rear View Camera

Specification:
Se... Color CCD
1/3, 3.6mm : sensor range
Detection angle: 120 ° V / 170 ° H
Video signal: PAL
Effective Resolution: 528x572
Horizontal resolution: 420 TV lines
Night Vision: 18 IR LEDs
IR distance: 10 to 15m
Shutter Speed: 1/50 ~ 1 / 100th (sec.)
S / N ratio: greater than equal 48dB (AGC off)
Minimum illumination: 0.8 Lux / F1.2
Video Signal: RCA, 1.0Vp-p, 75
Focus distance: 5cm ~ infinit
Power supply: 12V DC, 300mA
Operating temperature: -20 ° to 60 °, RH 95% MAX
Storage temperature: -30 ° to 80 °, RH 95% MAX
Protection: IP67
Frequency: 2.4GHz
Power supply: 12V DC

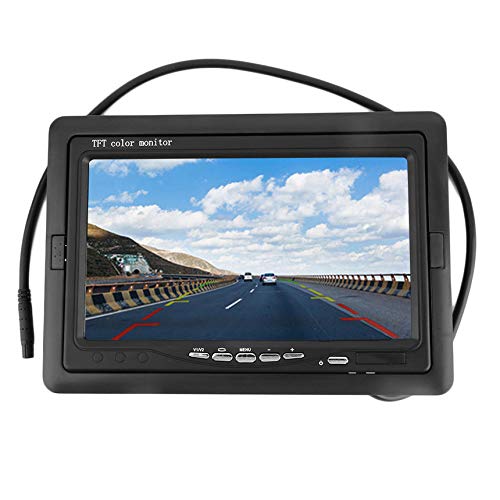

LCD Monitor: 7 "
Resolution: 480x234 (W x H)
Video input: AV1 + AV2 (The monitor can be connected simultaneously with two cameras.)
Video signal: PAL + NTSC (Universal for all reversing cameras)
Operating voltage: DC 9V - 35V
Power consumption: 6W
Switch: AV1 / AV2
Rotate image
Settings: brightness, contrast, color, menu language
Language: German, English, French, Spanish, Italian, Portuguese, Russian
Connect the power cord:
Red: positive "+"
Black: GND (grounding)
Green (or Blue): Backlight positive "+"
Package Weight: approx 969 g

Package Included:
- 1 x 7 "Monitor
- 1 x Frame
- 1 x bracket with 3M adhesive
- 1 x 1.2m power cord
- 1 x Remote Control
- 1 x 18 LED Night Vision Color Rear View Camera
- 1 x wireless video signal transmitter
