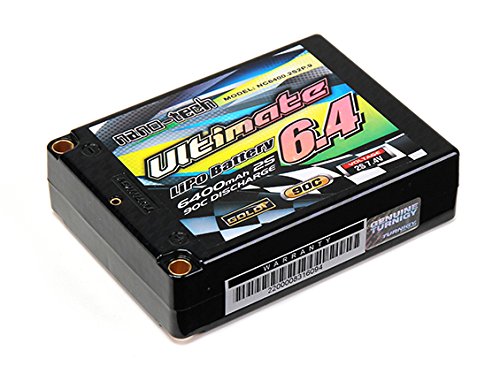

Turnigy nano-tech Ultimate 6400mah 2S2P 90C Hardcase Lipo Square Pack

Features: • Ultra high 90C discharge rate yielding virtually no voltage sag under load • Massive capacity (mAh) in a standard size pack • "Wide" or "Square" packs are ideal for use in any side-by-side saddle pack chassis. • Heavy duty 5mm bullet connectors with "through pack" design • 1 pair of 5mm bullet connectors included for use with your ESC (recommended for use with all nano-tech Ultimate batteries due to the extreme power output) Specs: Capacity: 6400mAh Voltage: 2S2P / 2S Cell / 7.4V Discharge: 90C Constant Weight: 326g (including wire, plug & case) Dimensions: 92.5x68x24.9mm Balance Plug: JST-XH Discharge Plug: 5mm Bullet-Connector Model no: NC6400.2S2P.9 Suitable for: AE (Team Associated) RC10B5, RC10B5M and SC104x4 and any other chassis that uses side-by-side saddle pack arrangements. The nano-core technology in lithium ion batteries is the application of nanometer conductive additives. 1) The nanometer conductive additives form ultra strong electron-conducting networks in the electrodes which can increase electronic conductivity. 2) These additives create a super strong ability for imbibition in the carrier liquid to supply more ion channels. This improves the ability of ion transmission and ion diffusion. Through improving electronic conductivity and ion transmission, the impedance is reduced and the polarization of high rate discharge decreases greatly. Advantages over traditional Lipo batteries: -Power density reaches 7.5 kw/kg. -Less Voltage sag during high rate discharge, giving more power under load. -Internal impedance can reach as low as 1.2mO compared to that of 3mO of a standard Lipoly. -Greater thermal control, pack usually doesn't exceed 60degC -Thickness swelling during heavy load doesn't exceed 5%, compared to 15% of a normal Lipoly during heavy load. -Higher capacity during heavy discharge. More than 90% at 100% C rate. -Fast charge capable, up to 15C on some batteries.
