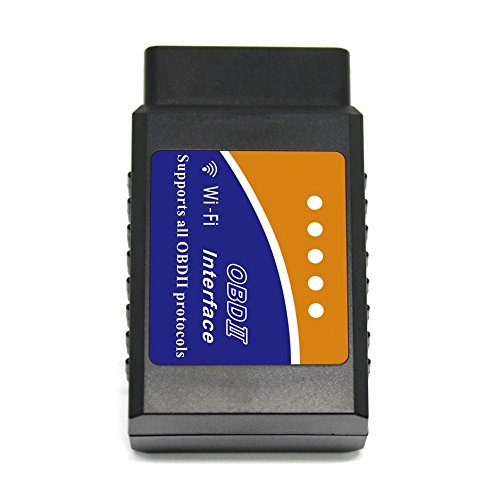

Wireless OBD2 Scanner, OBDII OBD Wifi Car Auto Code Reader Scanning Tool, OBD-II Engine Fault Diagnostic Code Tester, Suitable for OBD-2 Vehicles

Description:

Support OBDII Protocols:

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

for ISO 9141-2 (5 baud init, 10.4 kbaud)

for ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

for ISO 14230-4 KWP (fast init, 10.4 kbaud)

for ISO 15765-4 CAN (11 bit ID, 500 kbaud)

for ISO 15765-4 CAN (29 bit ID, 500 kbaud)

for ISO 15765-4 CAN (11 bit ID, 250 kbaud)

for ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Specifications:

Mo... V03HW-1

SSID: WiFi-OBDII

IP: 192.168.0.10

Port: 35000

Master chip: ST

Software version: 1.5

Support system: For Android/ For Windows/ For iOS

Working voltage: 9V~16V

Working current: 65mA

Standby current: 45mA

Working temperature: -40~85 degree Celsius

Working humidity: less than 60%

Size: 45*25*75mm

Color: Black

Package includes:

1 x Vehicle Diagnosis Tool

Notes:

Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
